ID # 39292663

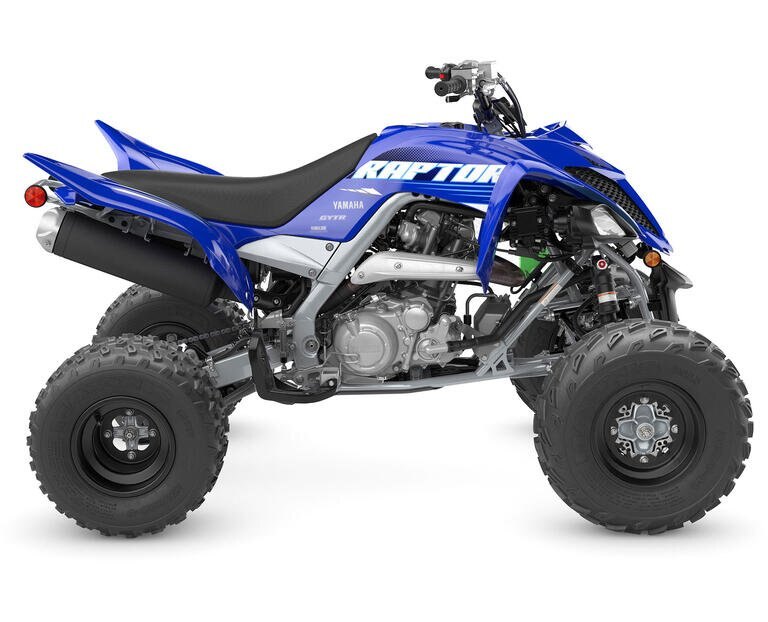

2026 Yamaha Raptor 700R Team Yamaha Blue

  • 2026 Yamaha Raptor 700R Team Yamaha Blue
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

THE PINNACLE OF SPORT ATVs. The best‑selling Sport ATV of all time offers superior style, comfort and unmatched big-bore performance.

Specifications
Model
Raptor
Category Name
ATVs
Year
2026
Sale Type
New
Manufacturer
Yamaha
Color
Team Yamaha Blue
engine
ENGINE
Liquid cooled, SOHC, 4-valve, single
Ignition
TCI: Transistor Controlled Ignition
Starting
Electric
FINAL DRIVE
X-ring chain; 2WD
LUBRICATION
Dry sump
DISPLACEMENT
686cc
TRANSMISSION
5-speed with reverse; wet multiplate clutch
FUEL DELIVERY
Yamaha Fuel Injection (YFI), 44mm
BORE AND STROKE
102 x 84mm
COMPRESSION RATIO
10.0:1
chassis
TIRES (REAR)
Maxxis, AT20 x 10-9
BRAKES (REAR)
Single 200 mm disc / twin piston caliper
TIRES (FRONT)
Maxxis, AT22 x 7-10
BRAKES (FRONT)
Dual 161 mm discs / twin piston calipers
SUSPENSION (REAR)
Cast aluminum swingarm with piggyback high/low-speed compression, rebound and threaded preload adjustment, 257 mm (10.1") travel
SUSPENSION (FRONT)
Independent double wishbone with piggyback high/low-speed compression, rebound and threaded preload adjustment, 231 mm (9.1") travel
highlights

2026 Yamaha Raptor 700R Team Yamaha BlueCAPABILITY

Race-bred five-speed transmission with reverse, along with the Raptor 700R’s monstrous powerband, means there’s a choice of gears in just about all situations. YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power while the heavy-duty clutch features a sturdy basket and plates designed to harness the power.

2026 Yamaha Raptor 700R Team Yamaha BlueCOMFORT

The YFZ-inspired handling of the Raptor 700R is incredible to experience while blasting through the woods. Thanks to the 9.1 inches of front travel and 10.1 inches out back, the trail bumps smooth out while the rider keeps things under control. With the combination of power, solid handling and a great suspension, this machine has to be experienced to be fully appreciated.

2026 Yamaha Raptor 700R Team Yamaha BlueCONFIDENCE

Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance with an additional twin-piston rear brake for maximum stopping power.



key features
  • Powerful 686cc, liquid-cooled, fuel-injected engine
  •  Lightweight hybrid steel aluminum frame
  • Long A-arm front suspension / Swingarm rear suspension
  • YZ-Style piggyback shocks
  • Race-bred five-speed transmission with reverse
  • Sporty ergonomics with YZ-Style seat
  • Lightweight aluminum wheels wrapped in Maxxis® tires
  • Electric starter
  • Yamaha Racing Blue graphics



critical data
WIDTH
1,155 mm (45.5")
HEIGHT
1,115 mm (43.9")
LENGTH
1,845mm (72.6")
Warranty
6 months (unlimited mileage)
Colour(s)
Team Yamaha Blue
WHEELBASE
1,280mm (50.4")
WET WEIGHT
191kg (422 lb)
SEAT HEIGHT
830 mm (32.7")
FUEL CAPACITY
11 litres
Maximum Ground Clearance
113mm (4.4") rear sprocket protector / 240 mm (9.4") engine
features & benefits

ENGINE

  • Big Bore Power
    • Powered by our most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever, this big bore sport ATV produces big torque right off idle, transitioning into a fat mid-range, and monstrous top-end.
  • Advanced Fuel Injection
    • The Yamaha Fuel Injection (YFI) offers consistent and excellent engine performance in a wide range of conditions, elevations and temperatures.
  • Digital Ignition
    • The digital TCI with 32-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
  • Electric Starter
    • Reliable push-button electric start in any gear adds extra convenience.
  • Robust Transmission
    • Race-bred five-speed transmission with reverse, along with the Raptor 700R’s monstrous powerband, means there’s a choice of gears in just about all situations. YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power while the heavy-duty clutch features a sturdy basket and plates designed to harness the power.
  • Excellent Serviceability
    • Easy-to-reach oil filter and tool-free air filter provide added convenience.

Chassis/Suspension

  • High-Tech Chassis
    • The state-of-the-art chassis combines a steel front section with a YZ-style piggyback rear shock that gives 10.1-inch wheel travel along with preload adjustment.
  • Advanced Suspension
    • YZ-style piggyback shocks are fully adjustable with high- and low-speed compression adjustability for maximum sport versatility along with preload and rebound adjustment. Front wheel travel is a plush 9.1 inches while the rear shock provides 10.1 inches of wheel travel.
  • Powerful Brakes
    • Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance, with an additional twin-piston rear brake for maximum stopping power.
  • Aggressive Maxxis® Tires
    • High-performance front 22x10-9 and 20x10-9 rear Maxxis® tires with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
  • Lightweight Wheels
    • Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
  • Wide Foot Pegs
    • Race-inspired 45mm serrated foot pegs provide excellent boot traction.
  • Strong Frame
    • The Controlled-Fill aluminum subframe and composite front grab bar are both light yet strong.

Additional Features

  • Sporty Ergonomics
    • The long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
  • High Visibility Lighting
    • Multireflector 30-watt Krypton headlights that are set back in the front cowl add the perfect, no-compromises sporting accent, and an LED taillight provides great visibility.
  • Large Fuel Tank
    • Large-capacity, 11 litre fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.
  • Ergonomic Controls
    • Thumb throttle lever has a smooth shape for a feel riders will appreciate, creating less fatigue at the end of the day while the handlebar-mounted flip-type parking brake lever is simple to use
  • Yamaha Diagnostic Tool
    • For improved serviceability, the Raptor 700R is Yamaha Diagnostic Tool-ready.
